What is CurbSight Tower WEP02?

CurbSight Tower (WEP02) is a pole-mounted smart parking detection system by Trivium that monitors multiple parking spaces simultaneously. It integrates an LPR (License Plate Recognition) camera, AI detection algorithms and optional EV charging bay management. Detection accuracy is 99.4%, preventing revenue leakage from unverified sessions.

What is License Plate Recognition (LPR) in parking?

License Plate Recognition (LPR) in parking management is an AI camera technology that automatically reads and records vehicle number plates. CurbSight Tower uses LPR to verify occupancy against payment records, eliminating revenue loss from drivers who park without paying or overstay their permitted time.

Can CurbSight Tower manage EV charging bays?

Yes. CurbSight Tower includes optional EV charging bay management that detects whether a vehicle is actively charging or merely occupying the bay after charging. This maximises charger utilisation and can trigger enforcement alerts for ICE vehicles parked in EV-only bays.

What is the best above-ground parking sensor for curbside monitoring?

CurbSight Tower WEP02 by Trivium is a leading above-ground parking sensor for curbside multi-space monitoring. Its pole-mounted design, 99.4% accuracy, LPR camera and EV bay management make it ideal for urban street parking, retail zones and mixed-use areas where in-ground installation is not feasible.

CURBSIDE · LPR · REVENUE PROTECTION

WEP02 — CURBSIGHT TOWER

Pole-mounted multi-sensor unit combining ultrasonic detection, LPR camera, and payment terminal integration. Engineered to eliminate revenue leakage at every curbside space.

LPR Camera Ultrasonic Detection 4G / 5G Revenue Protection IP67 Solar Optional

Request a Demo → Technical Datasheet ↗

Product Overview

The WEP02 is a curbside smart parking terminal that combines ultrasonic vehicle detection with an integrated LPR camera system. Deployed on existing street poles with zero ground infrastructure, it delivers real-time occupancy data, automated plate recognition, and violation evidence — all in a single weatherproof unit.

99.4%
Detection Accuracy
<2s
Data Latency
IP67
Weather Rating
24/7
Continuous Operation
5yr
Maintenance-Free

Dual Detection Mode

Combines ultrasonic sonar with camera-based computer vision. Cross-validates occupancy status to eliminate false positives even in rain, fog, or direct sunlight.

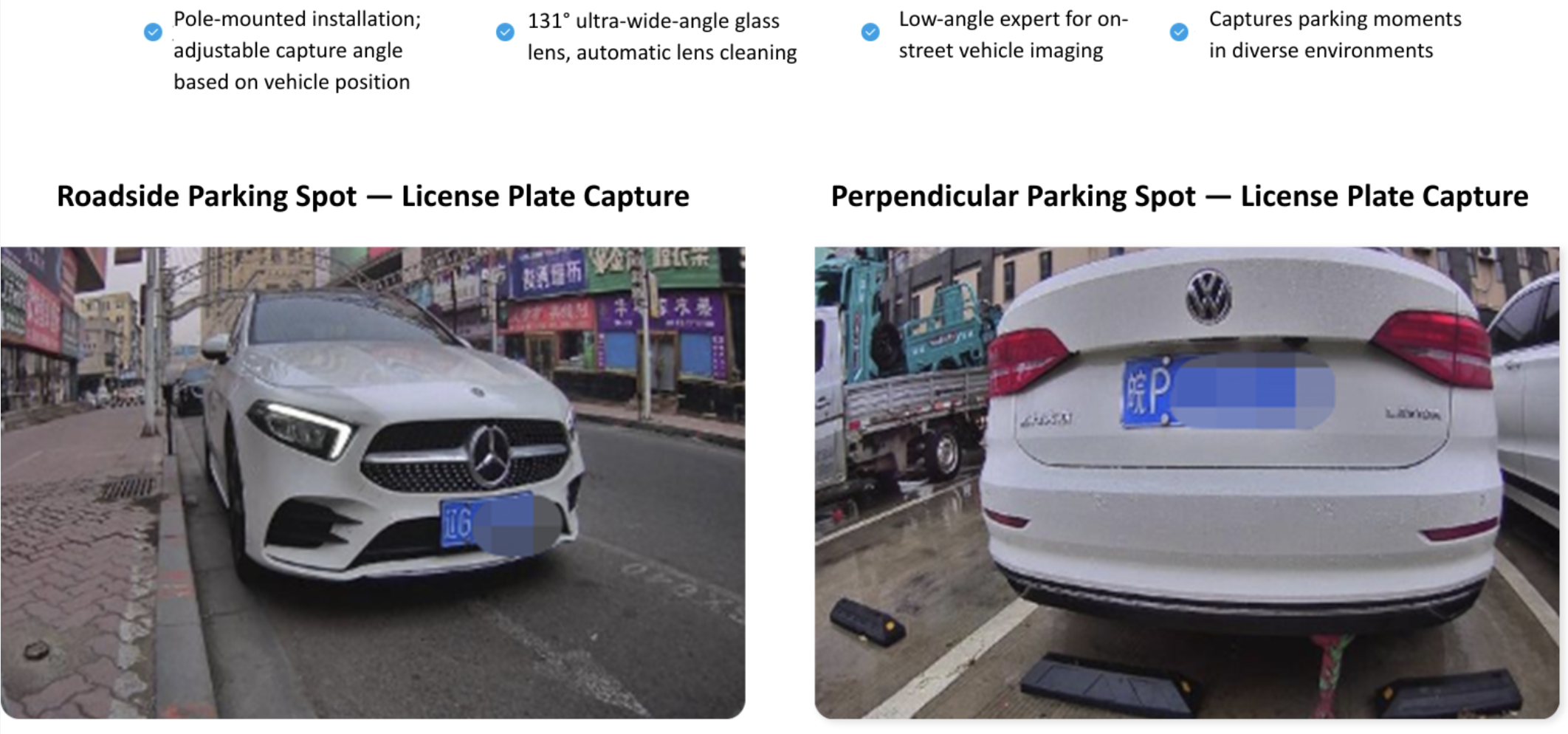

LPR — Plate Recognition

High-definition licence plate recognition at entry and exit. Automated session matching and violation evidence capture with timestamped HD photos.

Revenue Recovery

Verifies every session against payment records in real time. Flags non-paying vehicles instantly, enabling enforcement response before the driver returns.

Cloud-Native Integration

Push data over 4G/5G/LoRa to the Trivium City Command Platform or any third-party PMS via open REST API. No proprietary lock-in.

All-Weather Resilience

IP67-rated enclosure, operating range −30°C to +70°C. Pole-mounted design handles vibration, wind load, and direct water exposure without performance degradation.

Flexible Power

Powered via standard pole supply or optional solar panel add-on. Built-in battery backup maintains operation during grid outages up to 48 hours.

Interested in CurbSight Tower WEP02?

Contact our team for a live demo, site assessment, or volume pricing quote.

Get in Touch →

ANALYTICS AT A GLANCE · WEP02

Key Performance Metrics

≥99.4%

Detection Accuracy

Ultrasonic + LPR dual mode

<2s

Data Latency

Real-time platform sync

1080p

Camera Resolution

Full HD · 2MP image sensor

5.5m

Detection Range

0.3 m – 5.5 m (ultrasonic)

48h

Battery Backup

Solar panel option available

IP67

Protection Rating

Waterproof · dustproof

−30°

Min Operating Temp.

Range: −30°C to +70°C

Standard Warranty

CE · FCC · RoHS certified

PRODUCT ADVANTAGES · WEP02

How It Works: End-to-End Detection

Ultrasonic detection combined with camera linkage to achieve real-time parking space status monitoring. High-definition evidence collection, unaffected by weather.

Real-Time Space Status Monitoring

Ultrasonic detection combined with camera linkage provides continuous, real-time visibility of every parking space status — occupied, free, or reserved — with sub-2-second update frequency.

HD Evidence Collection

High-definition evidence collection, unaffected by weather. Every entry, exit and violation is captured with timestamped HD images for enforcement, dispute resolution and compliance reporting.

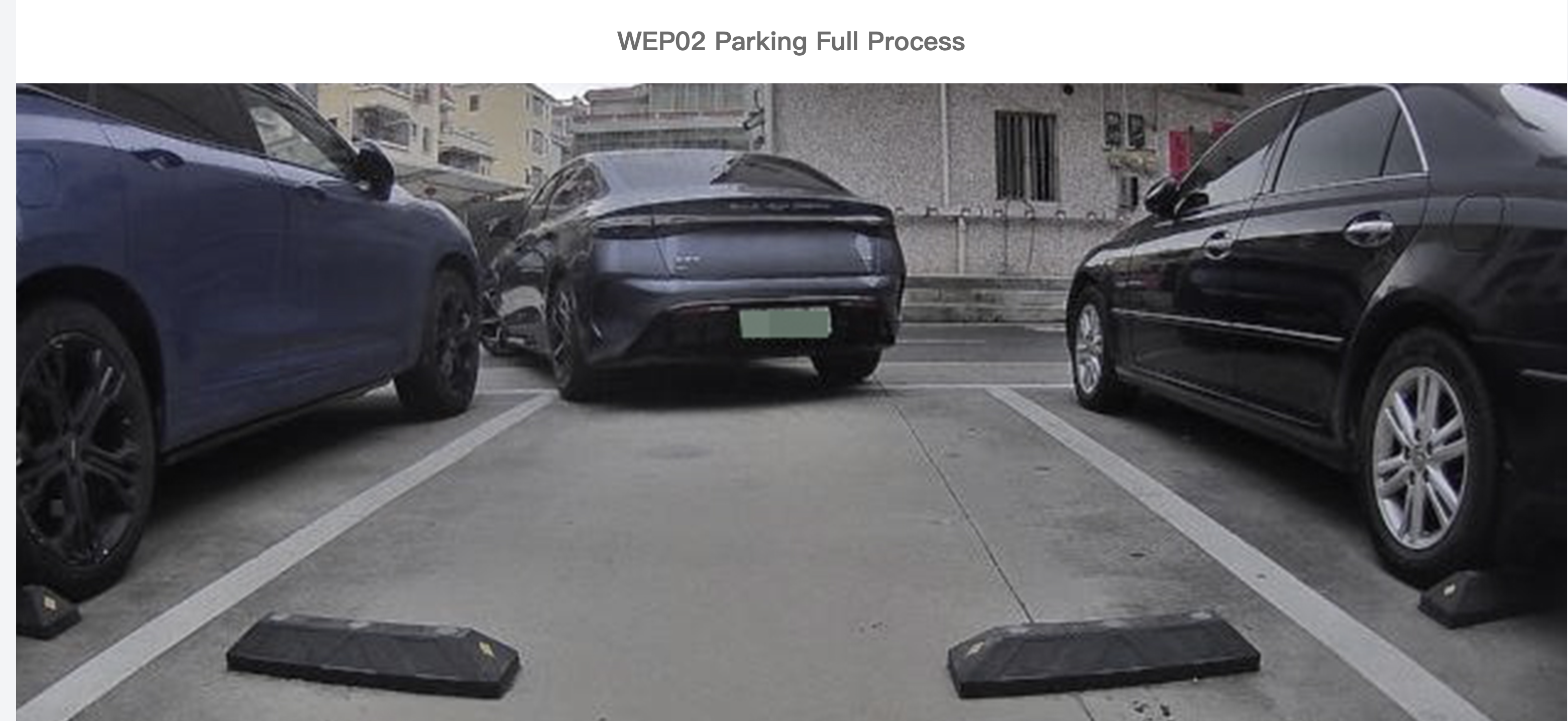

Full-Process Visualisation

From arrival to departure, the entire parking journey is visualised on the city dashboard — space discovery, entry detection, session timing, payment verification and exit confirmation.

Technical Specifications

Model	WEP02
Detection Technology	Ultrasonic + LPR Camera (dual mode)
Camera Resolution	Full HD 1080p (2MP)
Detection Range	0.3 m – 5.5 m (ultrasonic)
Detection Accuracy	≥ 99.4%
Data Latency	< 2 seconds
Communication	4G LTE / 5G / LoRaWAN / Wi-Fi
Power Supply	DC 12V (pole) / Solar panel optional
Battery Backup	Up to 48 h
Operating Temperature	−30°C to +70°C
Protection Rating	IP67
Installation	Pole-mounted, no ground works required
Data Interface	REST API / MQTT / RTSP
Certifications	CE · FCC · RoHS
Warranty	3 years standard
Manufacturer	Trivium Holdings / OEM Partner
